Product Overview

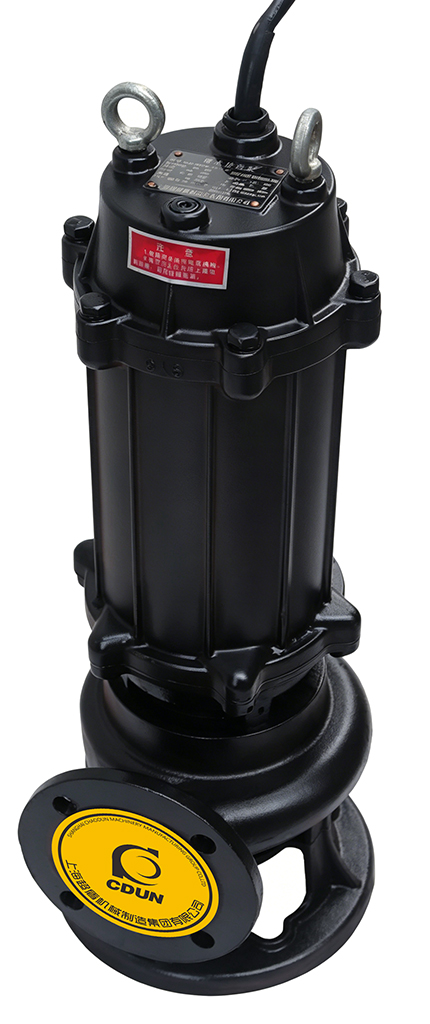

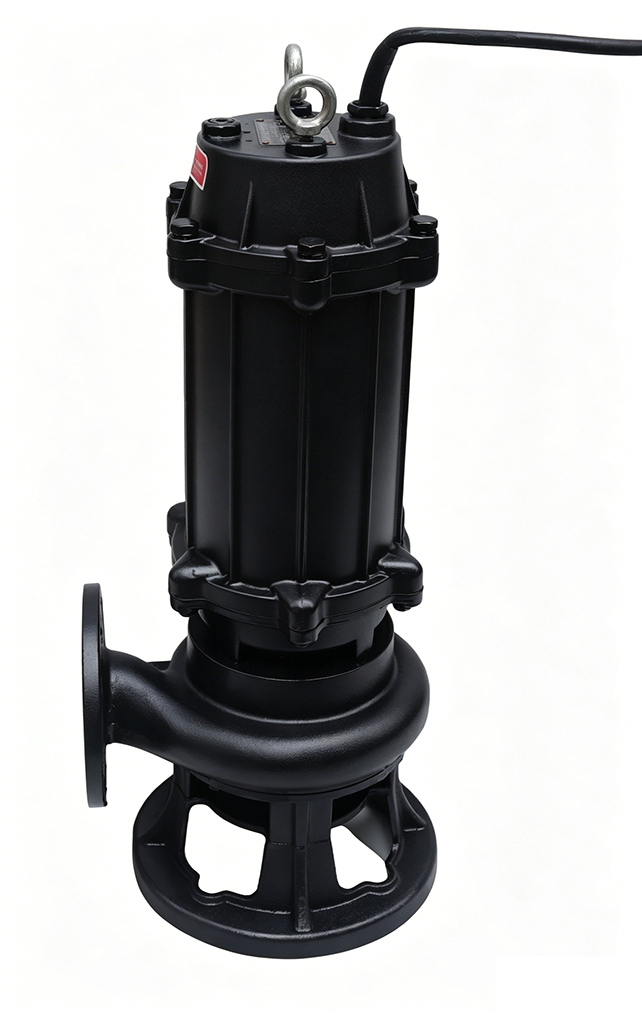

The WQ Series Submersible Sewage Pump is a submersible centrifugal pump designed for the transfer of sewage, wastewater and effluent in municipal, industrial and agricultural applications. The compact submersible configuration enables direct installation in sumps and wet wells without the need for a separate pump room, reducing installation costs and space requirements.

This pump is widely used in urban sewage treatment, municipal drainage and rural biogas applications. Depending on regional terminology, it may also be referred to as a Submersible Wastewater Pump, Submersible Sewage Pump, Submersible Sewage Pump or WQSewage Pump.

Key Features

• Compact submersible design suitable for direct installation in sumps and wet wells
• Small footprint and lightweight construction for easy handling and installation
• High operating efficiency with optimised hydraulic design
• Suitable for severely polluted wastewater discharge applications
• Reliable operation in demanding municipal and industrial environments
• Wide range of sizes covering flows up to 5500 m³/h

Applications

• Municipal wastewater treatment plant effluent transfer
• Urban sewage collection and drainage systems
• Civil defence drainage stations
• Hospital and hotel sewage and wastewater discharge
• Rural biogas pool and agricultural irrigation applications
• Industrial effluent drainage from manufacturing facilities

Customer Benefits

Compact Submersible Design

The submersible configuration enables direct installation in sumps and wet wells without the need for a separate pump room, reducing installation space requirements and construction costs.

High Operating Efficiency

The hydraulically optimised impeller design and efficient motor selection reduce power consumption during continuous sewage pumping, lowering utility costs over the pump service life.

Easy Installation and Mobility

The compact structure and lightweight construction enable straightforward handling, transportation and installation, reducing labour costs and installation time.

Severe Wastewater Handling Capability

The pump is designed to handle severely polluted wastewater discharge, making it suitable for demanding municipal and industrial sewage applications.

Extended Service Life

Robust construction and quality materials reduce component wear and extend maintenance intervals, lowering total cost of ownership over the pump service life.

Wide Operating Range

With flow rates from 10 to 5500 m³/h and heads from 5 to 145 m, the WQ Series covers a broad spectrum of municipal, industrial and agricultural sewage drainage requirements.

Technical Specifications

Parameter	Specification
Product Series	WQ Series
Pump Type	Submersible sewage pump
Flow Rate	10-5500 m³/h
Head	5-145 m
Motor Power	0.75-550 kW
Rotational Speed	2900 / 1450 / 980 r/min
Outlet Diameter	DN50-DN600
Installation Type	Submersible

Selection Guidance

To select the appropriate WQ Series submersible sewage pump, please provide the following information:

• Required flow rate (m³/h)
• Required head (m)
• Sewage composition (solid particle size, fibre content)
• Sump or wet well dimensions
• Available voltage and frequency
• Submergence depth
• Operating conditions and duty cycle

Final model selection should be confirmed according to the actual duty point, sewage composition and project conditions.

Installation and Maintenance

Installation Guidance

The submersible pump should be installed in a sump or wet well with adequate clearance for removal during maintenance. An auto-coupling system should be used for straightforward pump installation and removal. The discharge piping must be properly connected and supported.

Pre-Start Inspection

Before starting the pump, confirm the following:

• Pump is properly positioned in the sump or wet well
• Auto-coupling connection is secure and properly aligned
• Discharge piping connection is complete and leak-free
• Electrical cable is properly connected and insulated
• Impeller rotates freely without obstruction
• Float switch or level sensor is correctly set for automatic operation

Routine Maintenance

Regular inspection should include:

• Checking mechanical seals for leakage
• Monitoring motor insulation resistance
• Verifying that the pump maintains the required flow and head during test runs
• Inspecting auto-coupling and guide rail system
• Checking float switch or level sensor operation

Available Configurations

• Flow rates from 10 to 5500 m³/h
• Heads from 5 to 145 m
• Motor powers from 0.75 to 550 kW
• Rotational speeds: 2900 / 1450 / 980 r/min
• Outlet diameters from DN50 to DN600
• Auto-coupling installation system included

FAQs

What is a WQ Series submersible sewage pump?

It is a submersible centrifugal pump designed for the transfer of sewage, wastewater and effluent in municipal, industrial and agricultural applications, with direct installation in sumps and wet wells.

What is the flow range of the WQ Series?

The WQ Series offers flow rates from 10 to 5500 m³/h, suitable for small to large sewage drainage applications.

What is the head range?

Available heads range from 5 to 145 m.

What liquids can this pump handle?

It is suitable for sewage, wastewater and severely polluted effluent, making it suitable for demanding municipal and industrial drainage applications.

Why use a submersible configuration?

The submersible configuration enables direct installation in sumps and wet wells without the need for a separate pump room, reducing installation space requirements, construction costs and noise levels.

Where can the WQ Series be used?

It is widely used in municipal wastewater treatment, urban sewage drainage, civil defence stations, hospital and hotel sewage discharge, rural biogas applications and agricultural irrigation.
