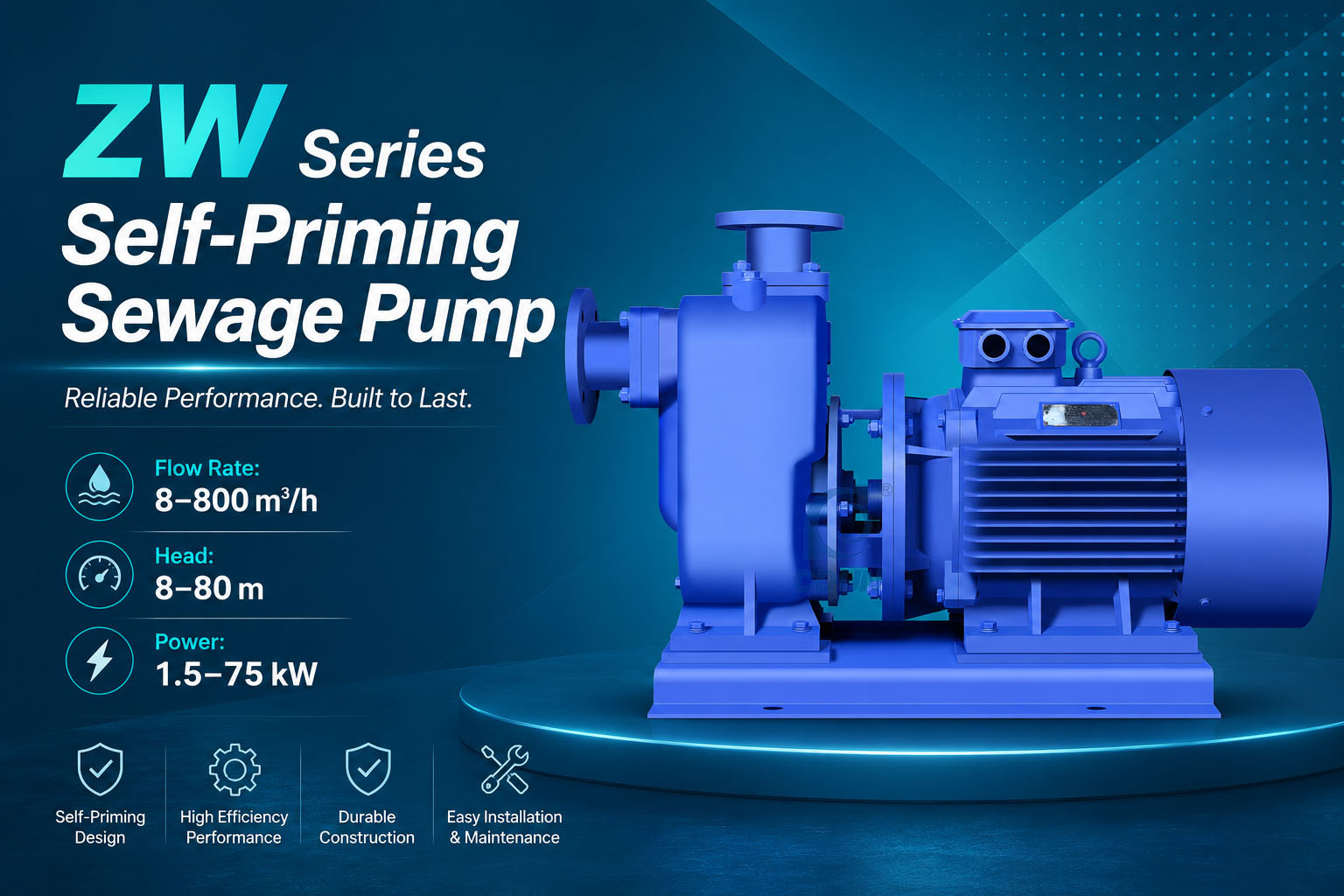

Product Overview

The ZW Series Self-Priming Sewage Pump is a highly efficient, self-priming wastewater pump designed for challenging sewage and industrial effluent applications. Also known as Self-Priming Sewage Pump, Self-Priming Waste Water Pump, or Automatic Priming Sewage Pump in different regions, this pump combines the advantages of self-priming capability with powerful sewage handling performance.

Engineered with a unique impeller design and spacious pump chamber, the ZW Series can handle solids up to 80% of the pump’s inlet diameter, making it ideal for wastewater containing fibers, paper, sand, and other solid particles. The self-priming function eliminates the need for foot valves and manual priming, allowing the pump to automatically evacuate air and create vacuum for continuous operation.

Manufactured by Shanghai Chaodun Machinery Manufacturing Group Co., Ltd., this sewage pump features compact construction, reliable performance, and extended service life. The robust design ensures stable operation even under heavy-duty conditions, while the simplified maintenance structure reduces downtime and operational costs.

With flow rates ranging from 8 to 800 m³/h and heads up to 80 meters, the ZW Series serves diverse applications including municipal sewage systems, industrial wastewater treatment, building drainage, and environmental protection projects. The self-priming capability makes it particularly suitable for installations where the pump is positioned above the liquid level.

Key Features

1. Automatic Self-Priming Capability – The pump can automatically evacuate air and create vacuum without manual intervention or foot valves. Self-priming height reaches 4-7 meters, enabling flexible installation above liquid level and simplifying system design.
2. Strong Solids Handling – Unique impeller design allows passage of solids up to 80% of inlet diameter. Can handle wastewater containing fibers, paper, sand, gravel, and other solid particles without clogging, ensuring continuous operation in challenging applications.
3. Compact and Space-Saving Design – Integrated self-priming function eliminates the need for external priming equipment or foot valves. Compact footprint reduces installation space requirements while maintaining high performance and reliability.
4. High Efficiency and Energy Savings – Optimized hydraulic design delivers excellent efficiency across the operating range. Reduced energy consumption compared to conventional sewage pumps, with lower operating costs over the pump’s service life.
5. Reliable and Durable Construction – Heavy-duty materials and precision manufacturing ensure extended service life even in corrosive wastewater environments. Robust bearings and seals provide reliable operation under continuous duty conditions.
6. Easy Maintenance Access – Simplified design allows quick access to impeller and internal components without removing the pump from the pipeline. Back pull-out design enables maintenance without disturbing suction and discharge piping connections.

Applications

1. Municipal Sewage Systems – Primary wastewater transfer and treatment in municipal sewage pumping stations, lift stations, and treatment plants. Handles raw sewage, screened wastewater, and return activated sludge with consistent reliability.
2. Industrial Wastewater Treatment – Transfer and circulation of industrial effluent containing solids, fibers, and chemicals in manufacturing facilities, chemical plants, food processing plants, and textile mills. Resists clogging from fibrous materials.
3. Building and Community Drainage – Basement drainage, underground parking lot dewatering, and residential community sewage collection in commercial buildings, shopping malls, hotels, and residential complexes. Automatic operation ensures reliable drainage.
4. Environmental Protection Projects – Wastewater transfer in environmental remediation projects, landfill leachate handling, and contaminated water treatment facilities. Handles challenging fluids with high solids content and variable composition.
5. Agricultural Irrigation and Drainage – Drainage of irrigation return water, agricultural wastewater, and farm effluent containing organic solids. Self-priming capability enables flexible installation in open channels and collection pits.
6. Food and Beverage Industry – Transfer of process wastewater containing organic solids, vegetable matter, and food processing by-products. Sanitary construction options available for food-grade applications requiring frequent cleaning.

Customer Benefits

1. Reduced Installation Complexity – Self-priming capability eliminates the need for foot valves, priming tanks, or vacuum pumps. Simplified installation reduces initial system cost and commissioning time while providing operational flexibility.
2. Lower Maintenance Costs – Clog-resistant impeller design minimizes blockages and reduces maintenance frequency. Easy access to internal components enables quick servicing without specialized tools or extensive disassembly.
3. Extended Service Life – Heavy-duty construction and wear-resistant materials provide reliable operation in abrasive and corrosive environments. Reduced wear on impellers and seals extends maintenance intervals and lowers replacement costs.
4. Energy Efficiency – Optimized hydraulic design delivers high efficiency across the operating range, reducing electricity consumption and operating costs. Variable speed drive compatibility allows further energy savings in variable flow applications.
5. Operational Reliability – Automatic self-priming ensures consistent operation without manual intervention. Reliable performance under varying liquid levels and flow conditions provides peace of mind for critical drainage applications.
6. Flexible Installation Options – Self-priming capability allows installation above liquid level, saving space and simplifying piping layout. Multiple material options enable customization for specific application requirements and fluid characteristics.

Technical Specifications

Parameter	Specification
Flow Rate Range	8-800 m³/h
Head Range	8-80 m
Motor Power Range	1.5-75 kW
Self-Priming Height	4-7 m
Inlet/Outlet Diameter	DN25-DN300
Maximum Solids Passage	Up to 80% of inlet diameter
Maximum Working Pressure	0.6 MPa
Maximum Temperature	80°C (standard), up to 120°C optional
Pump Casing Material	Cast Iron (HT200/HT250), Ductile Iron, Stainless Steel
Impeller Material	Cast Iron, Stainless Steel, Bronze
Shaft Material	Carbon Steel, Stainless Steel (AISI 410/431)
Seal Type	Mechanical seal or packed gland
Rotation	Clockwise viewed from motor end
Flange Standard	GB/T 17241.6, ISO 7005-2, DIN 2501
Performance Testing	GB/T 3216, ISO 9906

Selection Guidance

Selecting the right ZW Series Self-Priming Sewage Pump requires careful consideration of application requirements:

1. Determine Flow Requirements – Calculate maximum wastewater flow based on peak usage conditions. Consider future expansion and safety margins. Select a pump that operates near best efficiency point at design flow rate.
2. Calculate Required Head – Determine total dynamic head including static lift, friction losses in piping, and residual pressure requirements. Include self-priming height in calculations. Add 10-15% safety margin for system degradation.
3. Evaluate Fluid Characteristics – Analyze wastewater composition including solids content, fiber concentration, pH level, and temperature. Select appropriate materials and impeller type based on fluid aggressiveness and abrasiveness.
4. Consider Installation Constraints – Evaluate available space, access for maintenance, and piping layout. Self-priming capability allows installation above liquid level, but ensure suction piping is as short and direct as possible.
5. Select Drive Configuration – Standard electric motor drive is suitable for most applications. Consider explosion-proof motors for hazardous areas or variable speed drives for energy optimization in variable flow applications.
6. Plan for Future Maintenance – Ensure adequate clearance around the pump for maintenance access. Consider spare parts availability and service support when selecting pump size and configuration.

Installation and Maintenance

Installation Requirements:

• Suction Piping: Keep suction piping as short and direct as possible. Avoid air pockets and high points in suction line. Use eccentric reducers with flat side up to prevent air accumulation.
• Priming Chamber: Initial priming requires filling the pump casing with liquid before first start-up. Subsequent self-priming is automatic as long as sufficient liquid remains in the pump chamber.
• Foundation: Install on a level, reinforced concrete foundation with adequate mass to absorb vibration. Ensure proper alignment between pump and motor.
• Ventilation: Provide adequate ventilation for motor cooling. Maintain pump room temperature below 40°C for optimal equipment life.
• Access Clearance: Maintain minimum 1-meter clearance around the pump for maintenance access. Ensure overhead clearance for impeller removal during servicing.

Maintenance Schedule:

• Weekly: Check oil levels in bearing housing. Inspect for unusual noise or vibration. Verify self-priming function by checking evacuation time.
• Monthly: Inspect mechanical seal for leakage. Check motor insulation resistance. Clean strainer or foot valve if installed.
• Quarterly: Measure and record vibration levels. Inspect impeller for wear or clogging. Check alignment and tighten mounting bolts.
• Annually: Perform flow and pressure test to verify performance. Inspect bearings and replace if necessary. Check wear ring clearance and replace if excessive.
• Every 2-3 Years: Complete pump overhaul including bearing replacement, seal replacement, and impeller inspection. Perform hydrostatic test on casing.

Maintenance Tips:

• Keep priming chamber filled with liquid during extended shutdown periods
• Use only OEM-approved spare parts to maintain performance and warranty coverage
• Monitor self-priming time as an indicator of pump condition
• Train operating personnel on proper priming procedures and troubleshooting

Available Configurations

The ZW Series offers extensive customization to meet specific application requirements:

Material Options:

• Cast iron casing with cast iron impeller (standard for municipal sewage)
• Ductile iron construction for higher pressure applications
• Stainless steel (304/316) for corrosive wastewater or food-grade applications
• Bronze-fitted for seawater or brackish water applications

Impeller Options:

• Open impeller for maximum solids passage and clog resistance
• Recessed impeller for fibrous materials and stringy solids
• Vortex impeller for abrasive slurries and high solids content

Seal Options:

• Single mechanical seal for standard applications
• Double mechanical seal with barrier fluid for hazardous or toxic fluids
• Packed gland for low-pressure applications or where seal flush is available

Drive Options:

• Standard electric motor (TEFC or explosion-proof)
• Variable frequency drive for energy optimization and flow control
• Diesel engine drive for remote locations or emergency backup

Accessory Options:

• Control panel with automatic level control and motor protection
• Dry-run protection sensor to prevent operation without liquid
• Vibration sensors for predictive maintenance
• Pressure gauges and flow meters for performance monitoring

FAQs

Q1: What is a self-priming sewage pump?

A self-priming sewage pump (also called self-priming waste water pump or automatic priming sewage pump) is a pump that can automatically evacuate air from the suction line and create vacuum without manual intervention. This allows the pump to be installed above the liquid level while still being able to draw liquid from below. The self-priming function is achieved through a special pump chamber design that retains liquid after each shutdown.

Q2: How does the self-priming function work?

The self-priming function works by recirculating a small amount of liquid stored in the pump chamber. During start-up, the impeller mixes this liquid with air from the suction line, creating an air-liquid mixture that is discharged through the outlet. The air separates and escapes while the liquid returns to the chamber, gradually evacuating air from the suction line until prime is achieved. This process typically takes 2-5 minutes depending on suction lift and pipe length.

Q3: What types of solids can the ZW Series handle?

The ZW Series can handle solids up to 80% of the pump’s inlet diameter, including fibers, paper, rags, vegetable matter, sand, and small stones. The unique impeller design provides large passage areas and smooth flow paths to prevent clogging. For applications with extremely large solids or high fiber content, consider the recessed or vortex impeller options.

Q4: Can the ZW Series be used for corrosive wastewater?

Yes, the ZW Series is available in stainless steel (304 or 316) construction for corrosive wastewater applications. Stainless steel provides excellent resistance to acids, alkalis, and chlorides commonly found in industrial wastewater. For highly corrosive applications, consult with our engineering team for specialized material recommendations or protective coatings.

Q5: What is the maximum self-priming height?

The maximum self-priming height for the ZW Series is 4-7 meters, depending on pump size and operating conditions. Actual self-priming height depends on factors including suction pipe length, pipe diameter, number of fittings, and liquid temperature. To ensure reliable self-priming, keep suction piping as short and direct as possible, and avoid air leaks in the suction line.

Q6: How do I select the right ZW pump size for my application?

Pump selection requires calculation of system flow demand and total dynamic head. Start by determining peak wastewater flow and required discharge pressure. Calculate friction losses in piping using the Hazen-Williams or Darcy-Weisbach equations. Select a pump from the ZW performance curves that operates near the best efficiency point at your required duty point. Our engineering team provides free pump selection assistance—contact us with your system requirements for a detailed recommendation.
