Product Overview

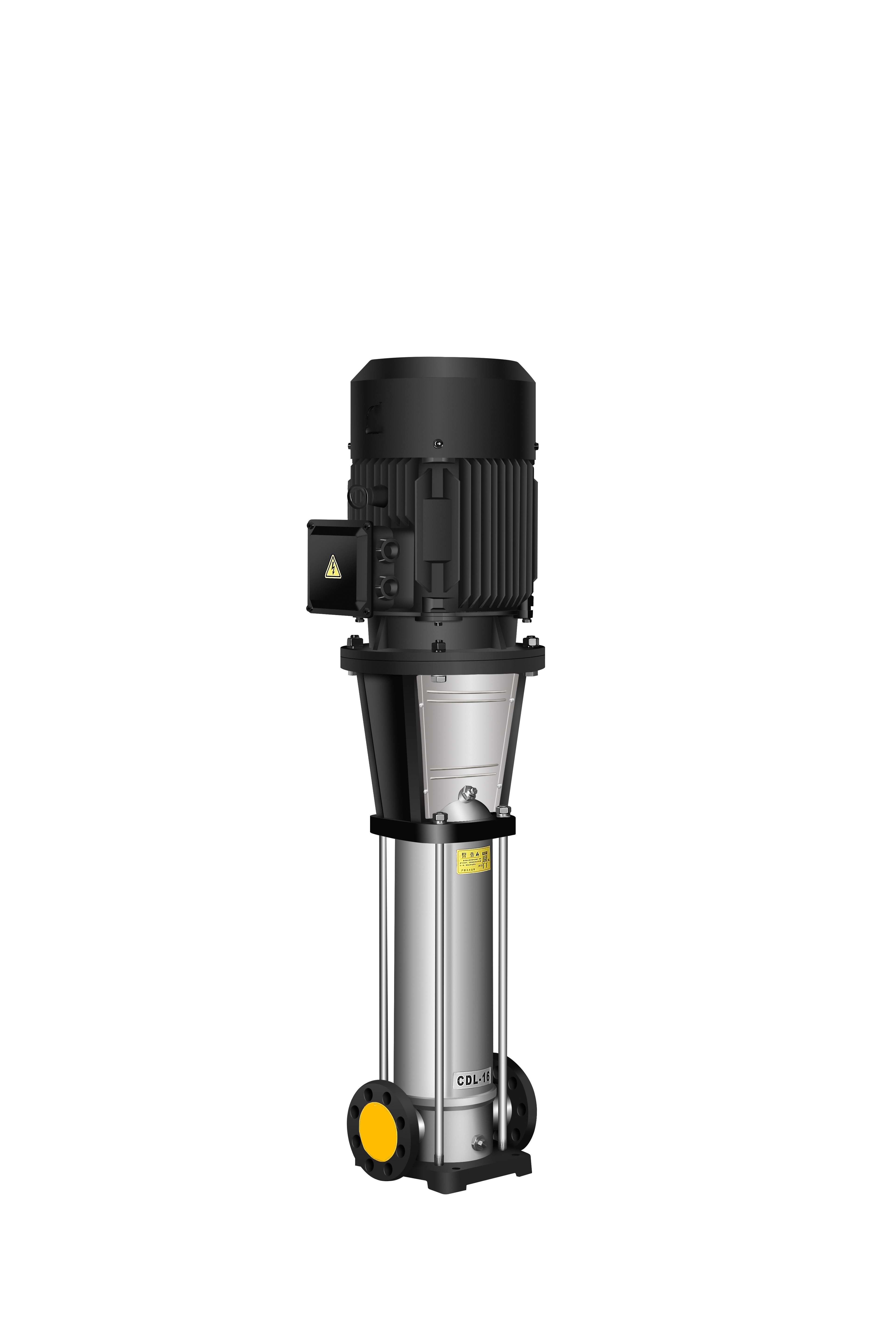

The CDLF Series Light-Duty Vertical Multistage Stainless Steel Centrifugal Pump is a vertically arranged multistage centrifugal pump designed for clean water transfer, pressure boosting and circulation in residential, commercial and light industrial applications. The CDLF Series features stainless steel construction for all wetted components, delivering hygienic and corrosion-resistant performance in a compact vertical footprint.

This pump is widely used in high-rise building water supply systems, industrial water circulation circuits, domestic water distribution and environmental water treatment processes. Depending on regional terminology, it may also be referred to as a Vertical Multistage Centrifugal Pump, Stainless Steel Booster Pump or Vertical Multistage Centrifugal Pump.

Key Features

• High operating efficiency with optimised hydraulic design for reduced energy consumption
• Compact vertical arrangement minimises floor space requirements in pump room installations
• Stainless steel wetted components ensure hygienic, corrosion-resistant water transfer
• Stable operating performance with rational structural design for extended service life
• Elegant, modern exterior suitable for exposed installations in building mechanical rooms
• Multistage impeller configuration delivers high head within a single integrated unit

Applications

• High-rise building water supply and domestic pressure boosting systems
• Industrial water circulation and process water transfer
• Domestic potable water distribution networks
• Environmental water treatment process circulation and pressurisation
• Central air conditioning chilled water and hot water circulation circuits
• Municipal and industrial water booster stations

Customer Benefits

Energy-Efficient Operation

The hydraulically optimised impeller design and efficient motor selection reduce power consumption during continuous operation, lowering utility costs over the pump service life.

Space-Saving Vertical Design

The vertical arrangement requires significantly less floor space than equivalent horizontal multistage alternatives, making the CDLF Series ideal for confined pump room layouts.

Hygienic Water Transfer

Stainless steel wetted components ensure clean, contamination-free water transfer suitable for domestic water supply and water treatment applications requiring hygienic conditions.

Extended Service Life

The rational structural design and corrosion-resistant stainless steel materials reduce component wear and extend maintenance intervals, lowering total cost of ownership.

Consistent Performance

The multistage impeller arrangement provides stable head and flow output across a wide operating range, accommodating system demand variations without performance degradation.

Wide Operating Range

With flow rates from 2 to 200 m³/h and heads from 5 to 280 m, the CDLF Series covers a broad spectrum of pressure boosting and circulation requirements.

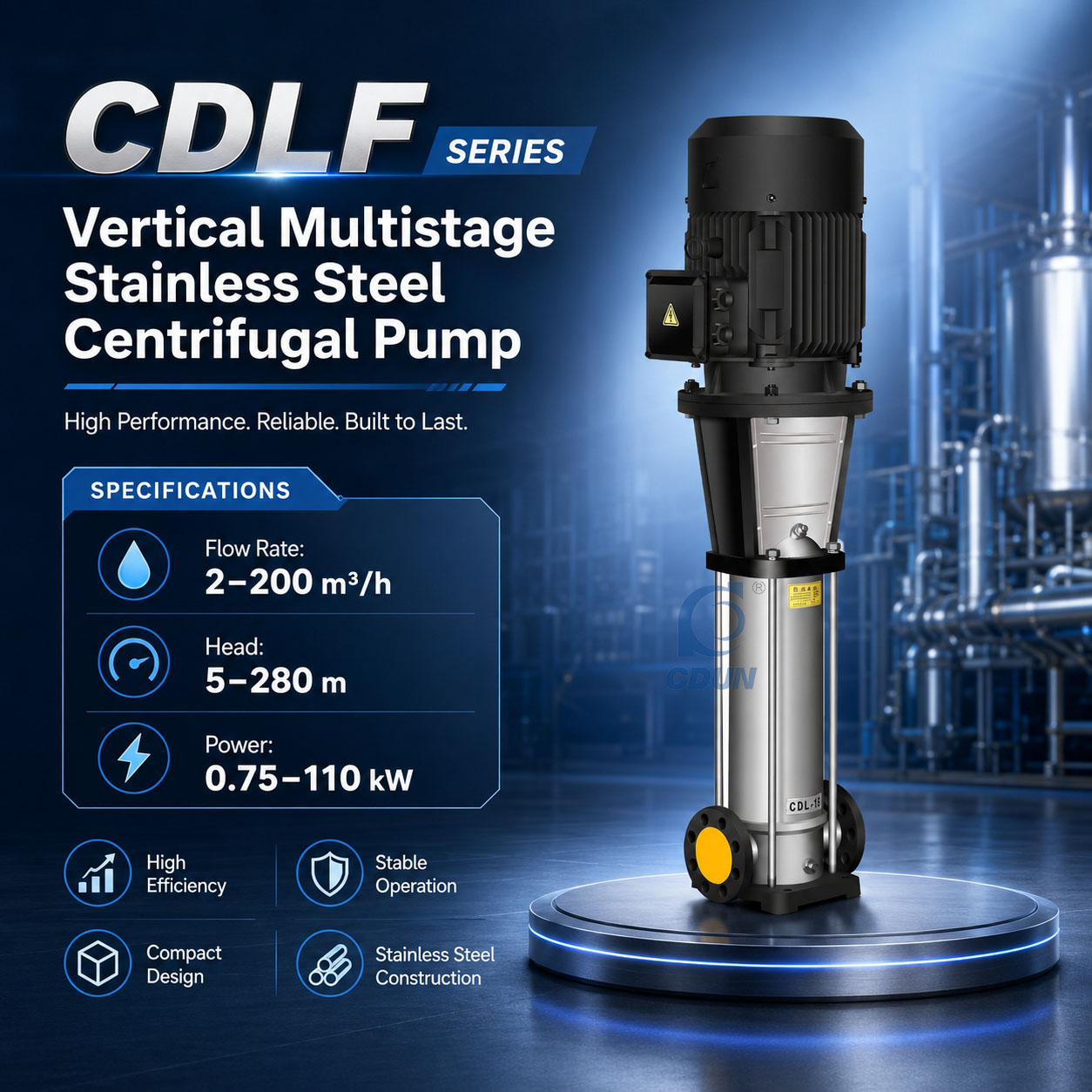

Technical Specifications

Parameter	Specification
Product Series	CDLF Series
Pump Type	Light-duty vertical multistage stainless steel centrifugal pump
Flow Rate	2-200 m³/h
Head	5-280 m
Motor Power	0.75-110 kW
Rotational Speed	2900 r/min
Outlet Diameter	DN25-DN150
Main Material	Stainless steel (wetted parts)
Installation Type	Vertical

Selection Guidance

To select the appropriate CDLF Series pump model, please provide the following information:

• Required flow rate (m³/h)
• Required head (m)
• Pipeline diameter and connection type
• Water source and liquid characteristics
• Installation space constraints
• Available voltage and frequency
• Operating temperature range
• Preferred motor power

Final model selection should be confirmed according to the actual duty point, system requirements and project conditions.

Installation and Maintenance

Installation Guidance

The pump should be installed on a level, stable foundation with adequate clearance for inspection and maintenance access. The inlet and outlet pipelines must be properly supported so that no external load is transferred to the pump connections.

Pre-Start Inspection

Before starting the pump, confirm the following:

• Pump is securely mounted and level
• Pipeline connections are complete and properly aligned
• Inlet and outlet passages are unobstructed
• Motor wiring is correct and terminals are secure
• Rotational direction matches the arrow indicated on the pump casing
• All fasteners are properly tightened

Routine Maintenance

Regular inspection should include:

• Checking mechanical seals for leakage
• Monitoring motor bearing temperature and vibration levels
• Verifying that the pump maintains the required flow and head
• Cleaning strainers and filters when necessary
• Inspecting all pipeline connections for signs of wear or leakage

Available Configurations

• Flow rates from 2 to 200 m³/h
• Heads from 5 to 280 m
• Motor powers from 0.75 to 110 kW
• Rotational speed: 2900 r/min
• Outlet diameters from DN25 to DN150
• Different stage configurations for varying pressure requirements

FAQs

What is a CDLF Series Vertical Multistage Pump?

The CDLF Series is a light-duty vertical multistage centrifugal pump constructed primarily from stainless steel, designed for clean water transfer, pressure boosting and circulation in building, industrial and water treatment applications.

What is the flow range of the CDLF Series?

The CDLF Series offers flow rates from 2 to 200 m³/h.

What is the head range?

Available heads range from 5 to 280 m, achieved through multistage impeller configurations.

What liquids can this pump handle?

It is suitable for clean water and non-aggressive, non-explosive liquids without solid particles or fibres. The stainless steel wetted components make it suitable for hygienic water transfer applications.

Why is stainless steel used?

Stainless steel construction provides corrosion resistance, hygienic water transfer and a long service life, making the CDLF Series suitable for domestic water supply and water treatment applications.

Where can the CDLF Series be used?

It is widely used in high-rise building water supply, industrial circulation systems, domestic water distribution, water treatment plant circulation and central air conditioning water circuits.

Contact Chaodun

For product selection, technical data, performance information or project quotations, please contact Shanghai Chaodun Machinery Manufacturing Group Co., Ltd.
