Product Overview

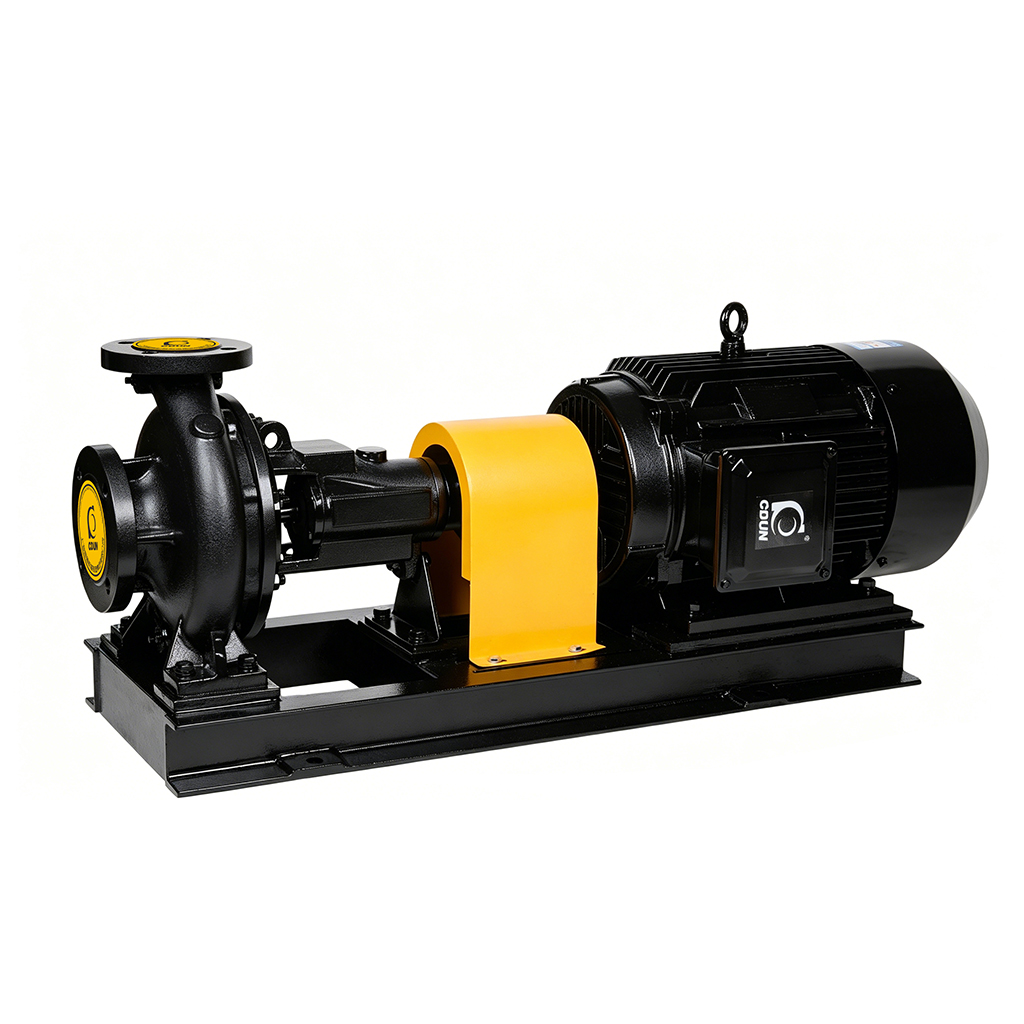

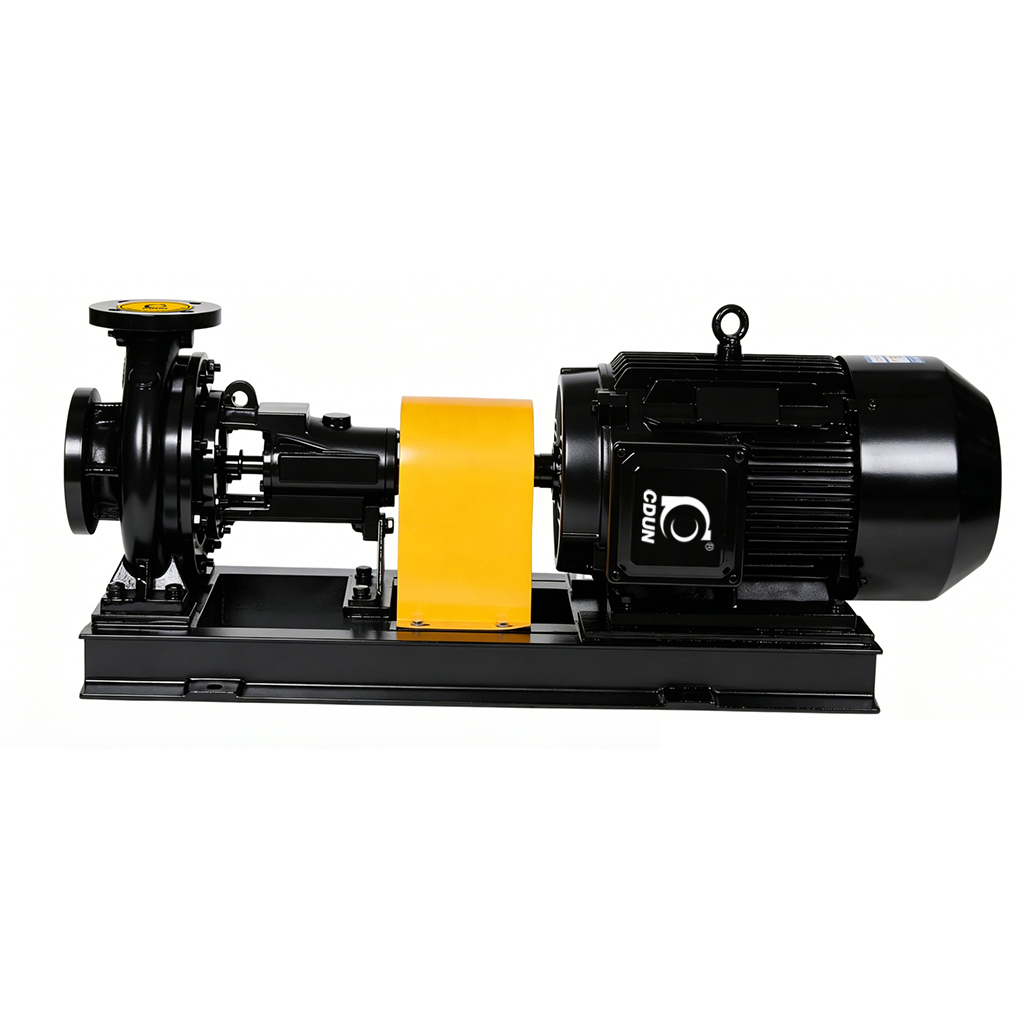

The Horizontal End-Suction Centrifugal Pump is a horizontal single-stage centrifugal pump with an end-suction configuration, designed for clean water transfer, industrial process water, HVAC water circulation and building water supply applications. The end-suction design enables straightforward pipeline connection with suction entering axially and discharge exiting radially, providing efficient hydraulic performance and convenient maintenance access.

This pump is widely used across commercial buildings, industrial facilities, HVAC systems and water treatment applications. Depending on regional terminology, it may also be referred to as an End-Suction Centrifugal Pump, Horizontal Single-Stage Pump, Horizontal End-Suction Pump or End-Suction Centrifugal Pump.

Key Features

• Horizontal end-suction configuration for straightforward pipeline connection and inline installation
• Single-stage impeller design provides efficient, reliable water transfer operation
• Robust structural design for extended service life in demanding water transfer applications
• Suitable for clean water and non-aggressive liquid applications
• Customisable flow rate, head, motor power and configuration per project requirements
• Straightforward maintenance access with end-suction design enabling casing opening without disturbing pipework

Applications

• Building water supply and pressure boosting for commercial and residential buildings
• Industrial process water transfer and circulation
• HVAC chilled water and hot water circulation circuits
• Water treatment plant clean water transfer
• Agricultural irrigation water supply
• Fire protection water supply systems

Customer Benefits

Straightforward Pipeline Connection

The horizontal end-suction configuration enables direct inline pipeline connection with axial suction and radial discharge arrangements, simplifying installation procedures and reducing installation costs.

Efficient Single-Stage Operation

The single-stage impeller design provides efficient water transfer for applications within the pump operating range, reducing energy consumption during continuous operation.

Easy Maintenance Access

The end-suction design allows the pump casing to be opened for impeller inspection and maintenance without disturbing the suction and discharge piping, reducing maintenance downtime and costs.

Customisable Configuration

Flow rate, head, motor power, pump quantity and control method can be determined according to specific customer requirements and project operating conditions, ensuring the pump is optimised for each application.

Extended Service Life

Robust structural design and quality materials reduce component wear and extend maintenance intervals, lowering total cost of ownership over the pump service life.

Versatile Application Range

With customisable flow and head ratings, the pump serves building water supply, industrial process water, HVAC circulation, water treatment and fire protection applications across diverse building types.

Technical Specifications

Parameter	Specification
Product Type	Horizontal single-stage end-suction centrifugal pump
Flow Rate	Customised per project requirements
Head	Customised per project requirements
Motor Power	Customised per project requirements
Installation Type	Horizontal end-suction
Configuration	Flow rate, head, motor power, pump quantity and control method customised per project

Selection Guidance

To select the appropriate horizontal end-suction centrifugal pump, please provide the following information:

• Required flow rate (m³/h or L/s)
• Required head (m)
• Liquid type and temperature
• Pipeline diameter and connection type
• Available voltage and frequency
• Installation space constraints
• Operating conditions and duty cycle

Flow rate, head, motor power, pump quantity and control method can be determined according to specific customer requirements and project operating conditions.

Installation and Maintenance

Installation Guidance

The pump should be installed on a rigid, level foundation with adequate clearance for inspection and maintenance access. The suction and discharge piping must be independently supported to prevent load transfer to the pump flanges.

Pre-Start Inspection

Before starting the pump, confirm the following:

• Pump is securely mounted and level
• Suction and discharge piping connections are complete and leak-free
• Pump casing is properly filled and primed
• Motor wiring is correct and terminals are secure
• Rotational direction matches the arrow indicated on the pump casing
• All fasteners are properly tightened

Routine Maintenance

Regular inspection should include:

• Checking mechanical seals for leakage
• Monitoring motor bearing temperature and vibration levels
• Verifying that the pump maintains the required flow and head
• Cleaning strainers and filters when necessary
• Inspecting all pipeline connections for signs of wear or leakage

Available Configurations

• Flow rates customised per project requirements
• Head customised per project requirements
• Motor powers customised per project requirements
• Pump quantity and control method determined per project
• Various impeller diameters for different duty points
• Integrated control panels with automatic start and monitoring

FAQs

What is a horizontal end-suction centrifugal pump?

It is a single-stage centrifugal pump with a horizontal end-suction configuration where water enters axially and exits radially, designed for clean water transfer and general industrial water supply applications.

What are the flow and pressure ratings?

Flow rate, head, motor power, pump quantity and control method are determined according to specific customer requirements and project operating conditions.

What liquids can this pump handle?

It is suitable for clean water and non-aggressive liquids without solid particles or fibres.

What applications is this pump suitable for?

It is suitable for building water supply, industrial process water, HVAC water circulation, water treatment and fire protection applications.

Why use an end-suction design?

The end-suction configuration enables direct inline pipeline connection and allows the pump casing to be opened for maintenance without disturbing the suction and discharge piping, simplifying installation and maintenance procedures.

What maintenance is required?

Regular maintenance includes checking mechanical seals for leakage, monitoring motor bearing temperature and vibration, verifying flow and head during operation, and inspecting pipeline connections.
