Product Overview

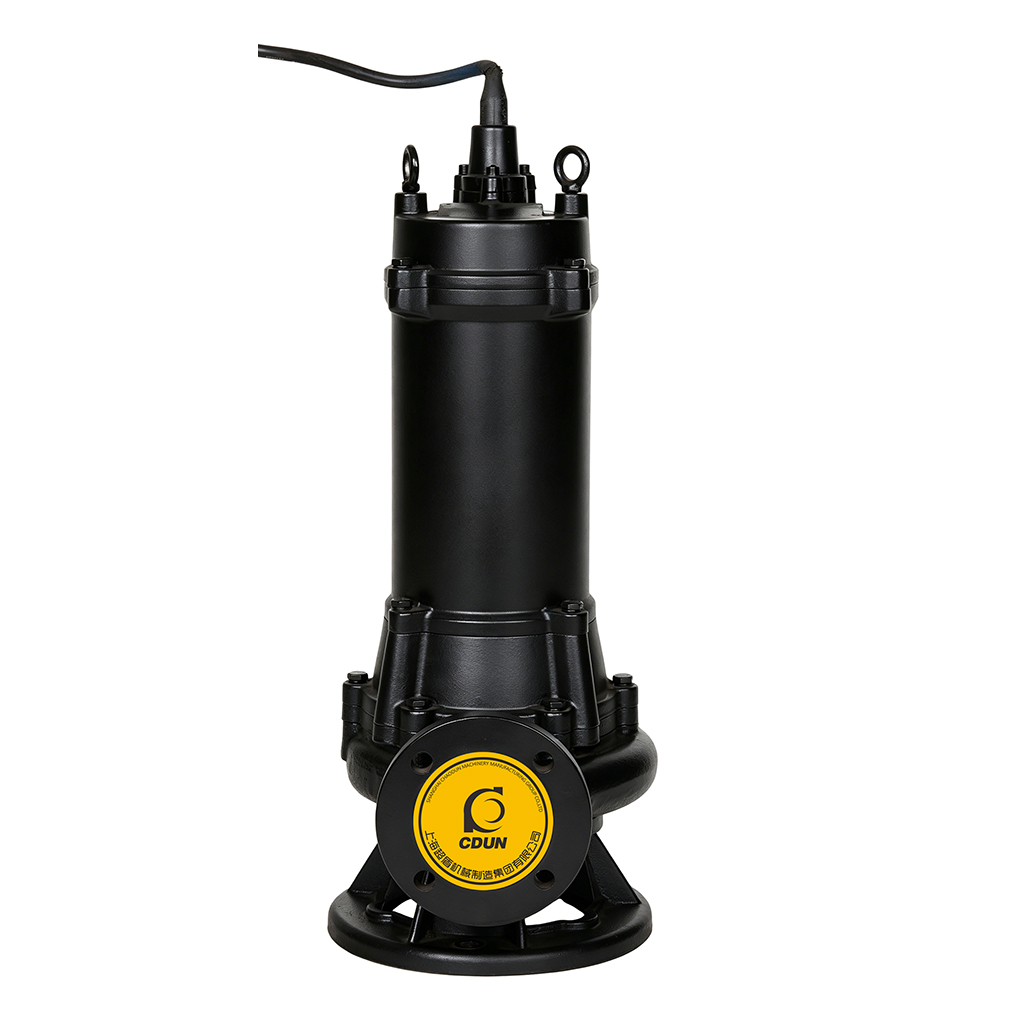

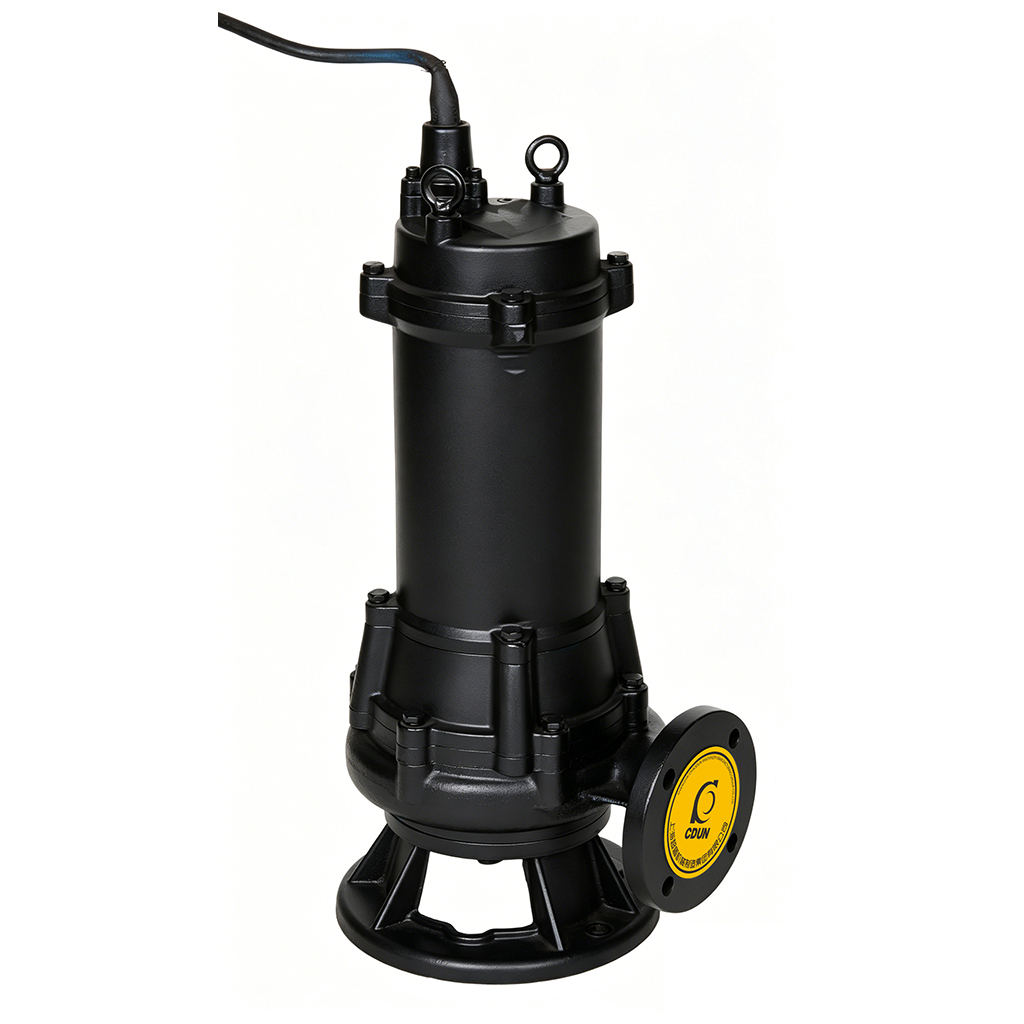

The WQK Series Cutter Submersible Sewage Pump is a submersible sewage pump equipped with a cutting mechanism that macerates solids, fibres and debris before they enter the pump impeller. This cutting action prevents clogging and enables reliable sewage transfer even when the wastewater contains rags, plastics and other fibrous materials that would otherwise cause blockages in conventional sewage pumps.

This pump is widely used in commercial basement drainage, municipal wastewater systems and institutional sewage management. Depending on regional terminology, it may also be referred to as a Cutter Submersible Pump, Macerator Submersible Sewage Pump, Cutter Submersible Sewage Pump or WQKCutter Sewage Pump.

Key Features

• Integrated cutting mechanism macerates solids and fibres before they enter the pump impeller
• Compact submersible design suitable for direct installation in sumps and wet wells
• Strong sewage handling capability with excellent anti-clogging performance
• Attractive exterior appearance with rational structural layout
• Reliable, smooth operation with robust construction for extended service life
• Suitable for sewage and wastewater containing rags, plastics and fibrous materials

Applications

• Factory and commercial building basement sewage drainage
• Urban sewage treatment plant effluent transfer
• Civil defence drainage stations
• Hospital and hotel sewage and wastewater discharge
• Municipal wastewater collection and drainage systems
• Sewage pumping in residential complexes and commercial facilities

Customer Benefits

Superior Cutting Performance

The integrated cutting mechanism macerates solids, rags, plastics and fibrous materials before they enter the pump impeller, preventing clogging and ensuring reliable sewage transfer even in challenging wastewater conditions.

Strong Sewage Handling Capability

With excellent anti-clogging performance and strong sewage throughput, the WQK Series reliably handles wastewater containing solids and fibres that would cause blockages in conventional sewage pumps.

Compact Submersible Design

The submersible configuration enables direct installation in sumps and wet wells without the need for a separate pump room, reducing installation space requirements and construction costs.

Reliable Operation

The robust construction and rational structural design ensure dependable sewage pumping under demanding municipal and commercial operating conditions.

Attractive Appearance

The compact, well-designed exterior makes the WQK Series suitable for installations where the pump may be visible, such as in commercial building basements and mechanical plant areas.

Wide Operating Range

With flow rates from 10 to 100 m³/h and heads from 10 to 50 m, the WQK Series covers a broad spectrum of commercial and municipal sewage drainage requirements.

Technical Specifications

Parameter	Specification
Product Series	WQK Series
Pump Type	Cutter submersible sewage pump
Flow Rate	10-100 m³/h
Head	10-50 m
Motor Power	0.75-15 kW
Rotational Speed	2900 r/min
Outlet Diameter	DN50-DN150
Installation Type	Submersible

Selection Guidance

To select the appropriate WQK Series cutter submersible sewage pump, please provide the following information:

• Required flow rate (m³/h)
• Required head (m)
• Sewage composition (solid particle size, fibre content, rags, plastics)
• Sump or wet well dimensions
• Available voltage and frequency
• Submergence depth
• Operating conditions and duty cycle

Final model selection should be confirmed according to the actual duty point, sewage composition and project conditions.

Installation and Maintenance

Installation Guidance

The submersible pump should be installed in a sump or wet well with adequate clearance for removal during maintenance. An auto-coupling system should be used for straightforward pump installation and removal. The discharge piping must be properly connected and supported.

Pre-Start Inspection

Before starting the pump, confirm the following:

• Pump is properly positioned in the sump or wet well
• Auto-coupling connection is secure and properly aligned
• Discharge piping connection is complete and leak-free
• Electrical cable is properly connected and insulated
• Cutting mechanism rotates freely without obstruction
• Float switch or level sensor is correctly set for automatic operation

Routine Maintenance

Regular inspection should include:

• Checking cutting mechanism for wear and damage
• Monitoring motor insulation resistance
• Verifying that the pump maintains the required flow and head during test runs
• Inspecting auto-coupling and guide rail system
• Checking float switch or level sensor operation

Available Configurations

• Flow rates from 10 to 100 m³/h
• Heads from 10 to 50 m
• Motor powers from 0.75 to 15 kW
• Rotational speed: 2900 r/min
• Outlet diameters from DN50 to DN150
• Auto-coupling installation system included

FAQs

What is a cutter submersible sewage pump?

It is a submersible sewage pump equipped with a cutting mechanism that macerates solids, fibres and debris before they enter the pump impeller, preventing clogging and enabling reliable sewage transfer.

What is the flow range of the WQK Series?

The WQK Series offers flow rates from 10 to 100 m³/h, suitable for commercial and municipal sewage drainage applications.

What is the head range?

Available heads range from 10 to 50 m.

What liquids can this pump handle?

It is suitable for sewage and wastewater containing solids, fibres, rags and plastics that would otherwise cause blockages in conventional sewage pumps.

Why use a cutter mechanism?

The cutter mechanism macerates solids, rags, plastics and fibrous materials before they enter the pump impeller, preventing clogging and ensuring reliable sewage transfer even when the wastewater contains challenging materials.

Where can the WQK Series be used?

It is widely used in factory and commercial building basement drainage, urban sewage treatment, civil defence drainage, hospital and hotel sewage discharge and municipal wastewater collection systems.
